cARTER MOTORS

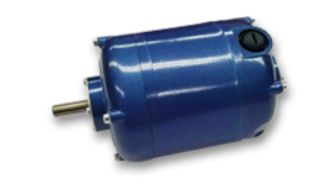

Efficient in both cost and performance, Carter Motor Company’s Permanent Magnet DC motor line offers the widest power range in the industry. With a wide range of input voltages and output speeds, Carter’s Engineering Department will be able to find or create a PMDC motor that will fulfill any need.

Product Specifications

• Input Voltage: 12-230 Volts
• RPM: 150-10,000 RPM
• Torque: Up to 240 IN-LBS
• Horsepower: 0.10-5 HP

 Frame Sizes

• 2.5″ Diameter (23-26 Frame)
• 3.25″ Diameter (32 Frame)
• 3.3″ Diameter (33-34 Frame)
• 4.0″ Diameter (42 Frame)
• 6.5″ Diameter (56 Frame)

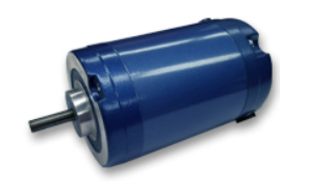

The Universal Motor Line has been an integral part of Carter’s product catalog, offering exceptional performance at a competitive price.

Product Specifications

• Input Voltage: 12-250 volts
• RPM: 500-24,000 RPM
• Torque: XXX IN-LBS
• Horsepower: 0.10-2.25 HP

 Frame Sizes

• 3.3″ Diameter (33-34 Frame)
• 4.0″ Diameter (42 Frame)
• 6.5″ Diameter (56 Frame)

 The Carter Motor Company DC PM Tachometer Generator provides a simple and dependable means to obtain your speed measurements. Our Tachometer Generator are designed to meet the need for high-output DC models in commercial and industrial applications. Rugged design and performance can meet needs of 5 to 60 volts per thousand RPM. The long life and trouble-free service provided by the DC PM Tachometer Generators will help you measure and control your product quality and performance at a low cost.

Product Specifications

• Volts (DC): 5 – 60 volts
• Amps: 0.1 – 0.35 amps
• KRPM: 3,000 – 10,000

 Carter voltage converters are designed for heavy-duty service and provide dependable power for many mobile and emergency standby applications. These converters and dynamotors are capable of delivering 500-750 watts continuous duty, and the Monarch provides up to 2,000 watts. The reserve capacity of these converters assures long life, cool running, and inherent output regulation to compensate for input voltage variations. They cannot be damaged by line transients, HV spikes or sudden overloads.

KS Series (60Hz, 3600 RPM)

• Input Voltage (DC Range): 250 volts
• Input Amps (Max Draw): 4.5 amps
• Output Watts (Max): 500 watts
• Output Volts (AC single phase): 115 – 230 volts

Carter Motor Company Gearmotors are designed with hardened worm gears and bronze gears for high torque output and long life. All Gearmotors are available with various gear reductions as well as an output shaft that can be changed up to 12 different positions.

Universal

• 3.3″ Diameter
• 4.0″ Diameter

PMDC

• 2.5″ Diameter
• 3.25″ Diameter
• 3.3″ Diameter

DC Shunt

• 3.3″ Diameter
• 4.0″ Diameter
